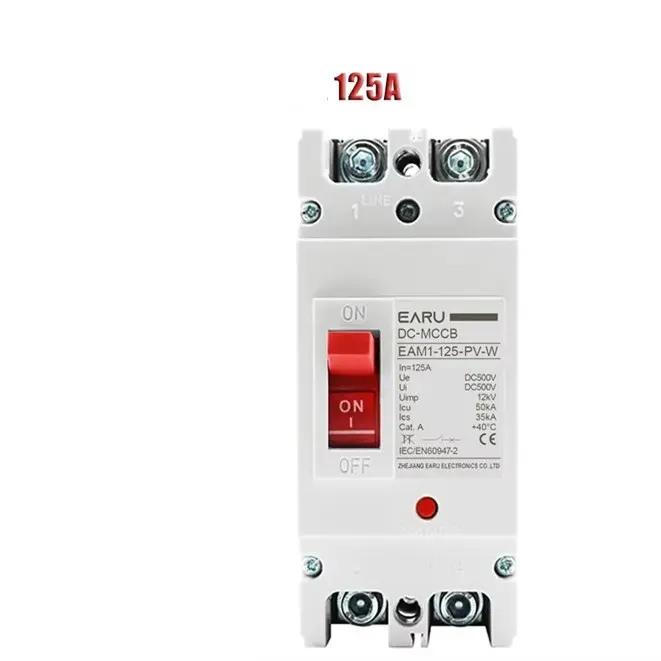

DC PV Solar 600V MCCB Molded Case Circuit Breaker EAM1-A-PV 2P 125A
The EAM1-A-PV 2P 125A is a specific model of DC molded case circuit breaker (MCCB) designed for use in photovoltaic (PV) solar systems and other DC electrical applications to provide overload and short-circuit protection.
Key Specifications
According to product listings on Amazon and AliExpress, the specifications for the EAM1-125PV (EAM1-A-PV) model are as follows:
- Model Number: EAM1-125PV
- Number of Poles: 2P
- Rated Current: 125A
- Rated Voltage: DC 600V
- Rated Short Circuit Capacity: 50KA
- Function: Overload protection and short-circuit protection
- Standard: IEC/EN 60947-2
- Material: Made of thermosetting material with good flame retardant properties
- Applications: Suitable for solar power, wind power, hydropower, and general DC power supply systems
Specifications
| Current | 125A |
| Type | DC |
