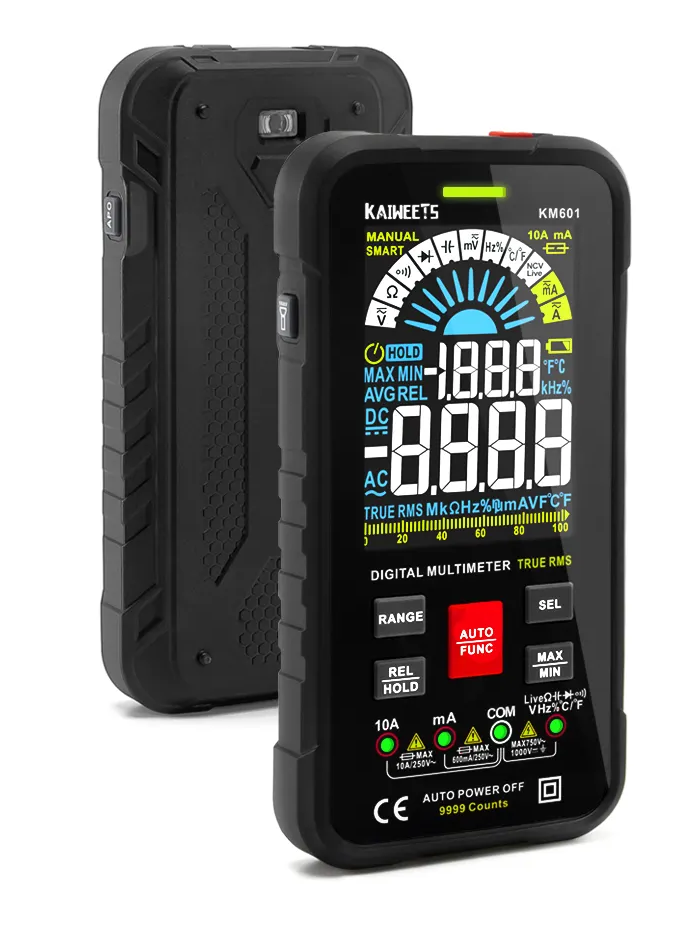

KAIWEETS KM601 Smart Digital Multimeter 10000 Counts Multifunctional True-RMS

Smart Mode: KM601 multimeter defaults to Smart Mode. In Smart Mode, the meter can automatically test voltage, resistance, and continuity. It can identify fast the measurement content and selects the range with the best resolution, you don’t need to do anything extra!

Upgraded Display: The voltmeter with a large LCD color screen, and flashlight for easy reading even in bright or dim places. And the voltmeter can display an analog bar, real-time temperature, low battery prompt, and damaged fuse prompt.

Multiple Functions: KAIWEETS digital multimeter KM601 can accurately measure AC/DC voltage, AC/DC current, and 10A current, and can also be used to test continuity, capacitance, frequency, duty cycle, resistance, diode, temperature, NCV, and live wire. With this smart digital voltmeter, you can solve industrial, vehicle, and household electrical problems.

Ensure Safety: (1) The multimeter is certified with CE and RoHS. (2) The design and manufacture of the instrument strictly comply with IEC61010-1 CAT III 1000V, CAT IV 600V overvoltage safety standards, and pollution level two. (3) The silicone cover can protect the multimeter from wear and electric shock. (4) The dual ceramic fuses, which have anti-burn and overload protection functions, can effectively protect the multimeter.

Usage:

‎▲ Voltage tester

▲ Large range measuring tool

▲ Frequency multimeter

▲ Diode electronic tester

▲ Capacitance digital meter

▲ Ohm meter

Upgraded Specification:

● DC Voltage: 99.99mV/999.9mV; 9.999V/99.9V/1000V ±(0.5%+3)

● AC Voltage: 99.9mV/999.9/mV; 9.999V/99.9V/750V ±(0.8%+3)

● DC Current: 9.999mA/99.99mA/999.9mA ±(0.8%+3); 9.99A ±(1.2%+3)

● AC Current: 9.999mA/99.99mA/999.9mA ±(1.0%+3); 9.99A ±(1.5%+3)

● Resistance: 999.9ohm/9.999k/99.99k/ 999.9kohm ±(0.8%+3); 9.999m/99.99mOhm ±(1.2%+3)

● Capacitance: 9.999/99.99/999.9nF/9.999/99.99/ 999.9uF ±(4.0%+3); 9.999mF/99.99mF ±(5.0%+5)

● Frequency: 99.99/999.9/9.999k/99.99k/999.9kHz/ 9.999mHz ±(1.0%+3)

● Duty: 01.%-99.99% ±(1.0%+2)
