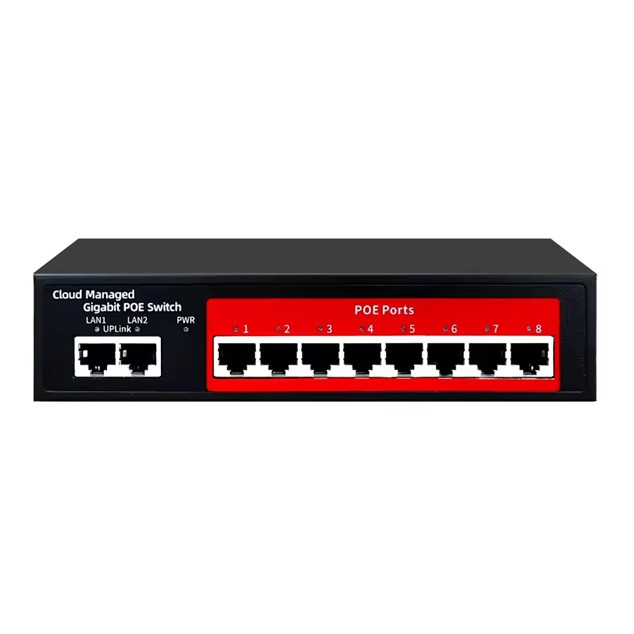

Gigabit cloud Managed network switch poe 10 ports 120w GPS208
120w Power 10/100/1000m Switch gigabit 8 Ports managed poe switches support APP
The 8-Ports Gigabit Managed PoE Switch is a fully gigabit Ethernet POE-powered switch, providing 10 10/100/1000M adaptive RJ45 port. Ports 1 to 8 have the POE power supply function which can be utilized as an Ethernet power supply device. All power supply ports can automatically detect and identify powered devices that meet the IEEE 802.3af/at standard. This model supports remote management, and can remotely manage the switch through the mobile APP
Feature
* Follow the IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet protocol standards;
* Support the 802.3af/at standard protocol, with intelligent detection for power supply, and will not burn out non-powered
devices;
* Overcurrent, overload, and short circuit protection, to eliminate hidden dangers and ensure power supply safety;
* Support common mode and differential mode lightning protection;
* Cloud network management: Visual remote management, on-site problems, remote resolution;
* Provided 10 10/100/1000M adaptive POE power supply ports, Ports 1 to 8 support the POE power function;
* All ports support the function of automatic flipping (Auto MDI/MDI-X);
* Support IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control;
* Support the independent learning and aging of MAC addresses;
* All-metal shell, and the whole machine is fully loaded with 120W;
* Plug and play
Specification
| Input/output Port | |
| Power Supply | AC input 100-250V, standard configuration 120W power supply |
| Ethernet Port | 8 * 10/100/1000Mbps PoE Port 2 * 10/100/1000Mbps RJ45 Port |
| Performance | |
| Bandwidth | 20Gbps |
| MAC Address | 2K |
| Standard | |
| The Maximum Power Output Of The Port | 30W |
| Overcurrent Protection | Supported |
| Overvoltage Protection | Supported |
| Short Circuit Protection | Supported |
| Sequential startup (to avoid excessive instantaneous current). | Supported |
| High power PD soft start. | Supported |
| Safety Certificate | CE,FCC,RoHS |
| Environmental standards | |
| Working Environment | Operating temperature: -0~40°C Storage temperature: -40~70°C Operating Humidity: 10%~90%, No condensation Storage Humidity: 5%~90%, No condensation Operating altitude: Maximum 6500 feet (2000 meters) Storage altitude: Maximum 6500 feet (2000 meters) |
| Function indication | |
| Indicator | PWR, PoE, Link/ACT |
| Power Indicator | Switch power indicator light is on: The device has been powered on. |
| PoE | Lighting: PoE on Un-Light: PoE off |
| Link/ACT | If the port indicator is steady on, the connection is normal. If the port indicator is blinking, the data is being transferred |
| Physical specifications | |
| Product Information | Product Dimensions: 190*140*43mm Package Dimensions: 220*195*52mm Product N.W: 0.7KG Product G.W: 1KG |
| Packing Information | Carton Dimensions: 415*290*465mm Packing Qantity: 20 pcs Packing weight: 21KG |
| power | Product power: maximum 10W POE power: maximum 120W |
| Packing list | 1. Ethernet switch: 1 Set 2. Instruction manual: 1 PCS 3. Certificate: 1 PCS 4. Power cord: 1PCS |
| Web Managed Function | |
| Basic functions | Follow the IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards Compatible with powered devices (PD) that conform to the IEEE 802.3af/at standard. Compatible with certified non-standard powered devices (PD). Store and forward the independent learning and aging of MAC addresses. IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control |
| Ethernet Protocols And Standards | IIEEE 802.3 Ethernet Media Access Control Protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af To achieve the power supply of Ethernet devices through Ethernet data lines or devices IEEE 802.3at To achieve high-power power supply of Ethernet devices through Ethernet data lines or devices IEEE 802.3x Traffic control |
| Data Transmission Rate | Ethernet 10Mbps half-duplex, 20Mbps full-duplex. Fast Ethernet 100Mbps half-duplex, 200Mbps full-duplex. Gigabit Ethernet 2000Mbps Full-Duplex |
| Cloud Network Management: Information Viewing. | Switch SN(Sequence Number) information device model firmware version real-time IP real-time port power port LINK status link duplex up and down link rate |
Cloud Network Management: Device Operation | Port isolation setting, port restart |
| port restart | |
| port POE switch | |
| port over-distance switch | |
| switch whole machine restart | |
| whole machine setting reset,firmware upgrade |
