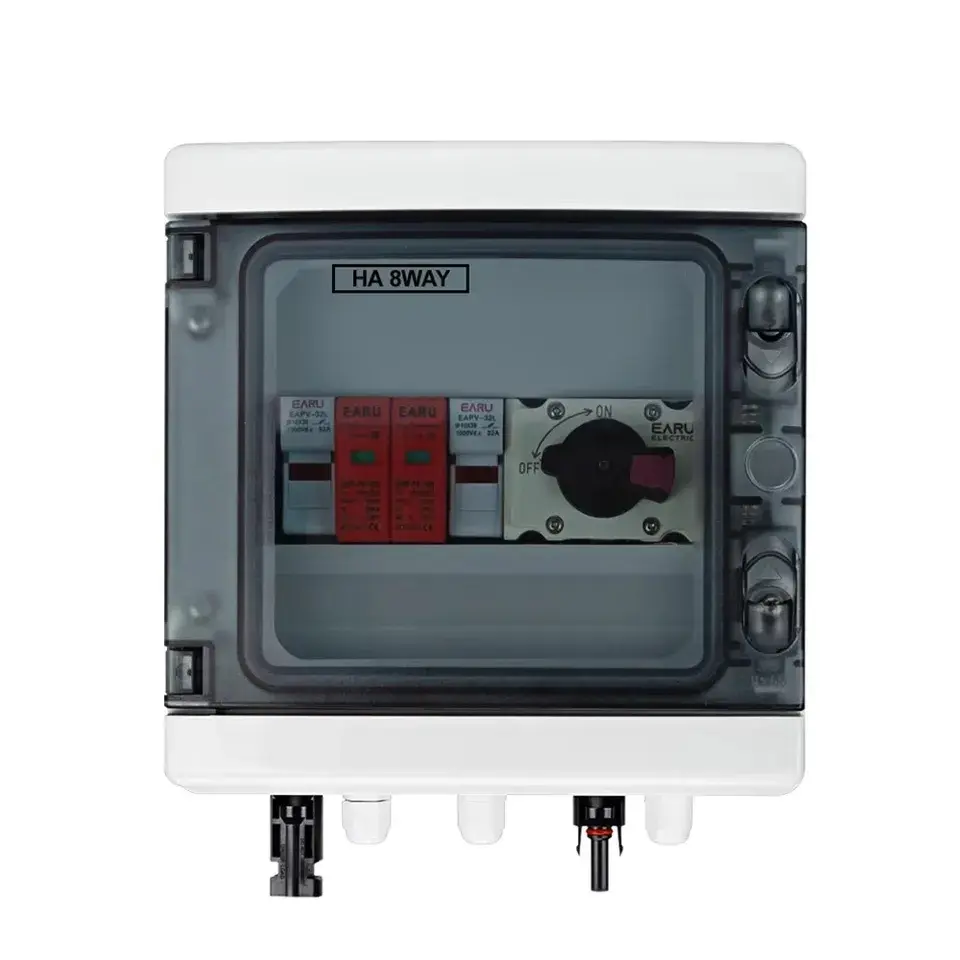

The EA-CB-PV-8 is an 8-string photovoltaic (PV) solar junction box (or combiner box) designed to connect multiple solar panel arrays, protecting them with integrated fuses, surge protection, and circuit breakers.
Key Features and Specifications:
- Capacity: 8 input strings (8 in, 1 out).
- Protection: Equipped with lightning protection modules (SPD), high-voltage DC fuses (typically 10A-15A per string), and DC circuit breakers for overload and short-circuit protection.
- Voltage/Current: Rated for up to 250Vdc-1000Vdc, with specific models supporting 10A-15A per string.
- Safety Features: Includes reverse current diodes, touch-safe protective covers, and IP65-rated enclosures for outdoor waterproof and fire-resistant performance.
- Compatibility: Suitable for both grid-tied and off-grid solar systems, with mounting hardware designed for easy installation.
